Box is constructed of 26ga galvanized steel.

Body of boot is approximately 10 deep to

accommodate fire damper and register.

Full 26 plate to attach boot to ceiling joist.

Collar is 2 tall.

Fire Damper Boots

Rounded Rectangle: Specification Sheet

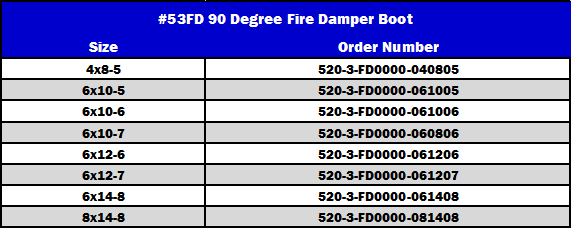

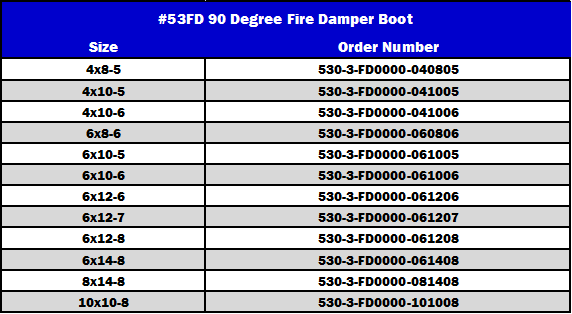

#53FD 90 Degree Fire Damper Boot

#52FD Straight Fire Damper Boot

Ceiling Diffuser Boots with Radiation Dampers Installed

Box is constructed of 26ga galvanized steel.

Body of boot is approximately 10 deep to

accommodate fire damper and register.

Full 26 plate to attach boot to ceiling joist.

Collar is 2 tall.

Rounded Rectangle: Specification Sheet

Prefabricated Pipe, Duct, and Fittings

for Heating and Air Conditioning.

The Quality You Expect....

The Satisfaction you Deserve.

P r o d u c t s , I n c .
